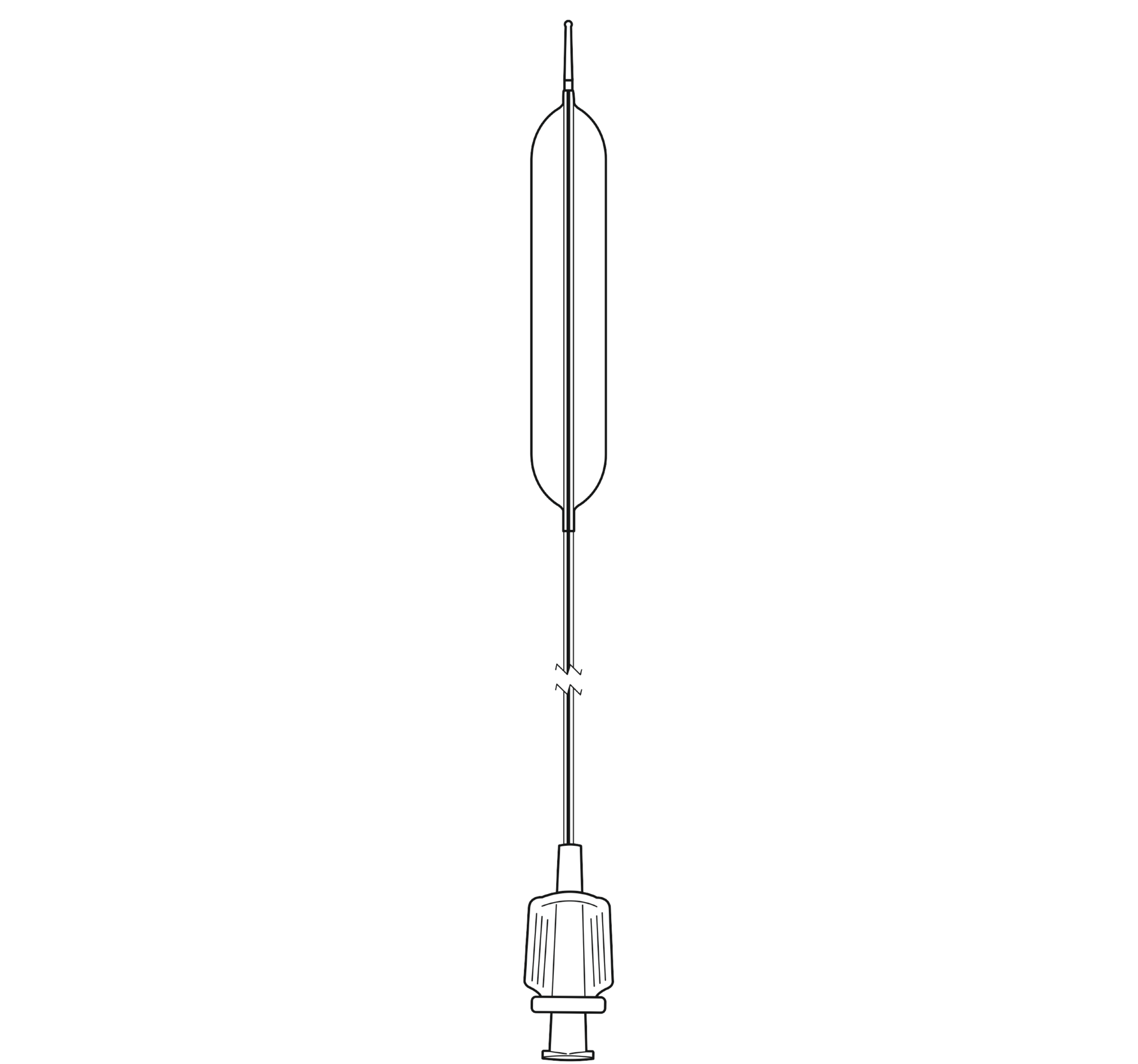

Single-use wire-guided three-stage oesophageal, pyloric, colonic and papillary balloon dilators

Wire-guided oesophageal, pyloric, colonic and biliary balloon dilator
Multi-size dilation function
Rounded balloon edges, transparent material
Centre balloon visual marker
Radiopaque markers at shoulders of balloon
Rapid insertion and retrieval time
0.035" guidewire preloaded
Working length: 2400 mm

Article number	Article Name	Quantity	Min. Working Channel ø	Balloon Length (B)	Inflation Pressure	Inflated Outer ø	Guidewire ø
EGBD-410X-0855	EZDilate 6-7-8 wg	1	2.8 mm	65 mm	2.0 - 5.6 - 9.6 bar	6.0 - 7.0 - 8.0 mm	0.035"
EGBD-410X-1055	EZDilate 8.5-9.5-10.5 wg	1	2.8 mm	65 mm	2.0 - 5.6 - 9.6 bar	8.5 - 9.5 - 10.5 mm	0.035"
EGBD-410X-1355	EZDilate 11-12-13 wg	1	2.8 mm	55 mm	2.0 - 3.5 - 5.6 bar	11.0 - 12.0 - 13.0 mm	0.035"
EGBD-410X-1555	EZDilate 13.5-14.5-15.5 wg	1	2.8 mm	55 mm	2.5 - 4.1 - 6.1 bar	13.5 - 14.5 - 15.5 mm	0.035"
EGBD-410X-1855	EZDilate 16-17-18 wg	1	2.8 mm	55 mm	2.5 - 4.1 - 5.6 bar	16.0 - 17.0 - 18.0 mm	0.035"
EGBD-410X-2055	EZDilate 18-19-20 wg	1	2.8 mm	55 mm	2.5 - 3.5 - 5.1 bar	18.0 - 19.0 - 20.0 mm	0.035"

Single-use fixed-wire three-stage oesophageal balloon dilatators

Fixed-wire oesophageal balloon dilator
Multisize dilation function
Rounded balloon edges, transparent material
Centre balloon visual marker
Radiopaque markers (proximal and distal ends)
Rapidinsertion and retrieval time
Working length: 1900 mm

Article number	Article Name	Quantity	Min. Working Channel ø	Balloon Length (B)	Inflation Pressure	Inflated Outer ø
EGBD-400P-0880	EZDilate 6-7-8 fw	1	2.8 mm	90 mm	2.0 - 5.6 - 9.6 bar	6.0 - 7.0 - 8.0 mm
EGBD-400P-1080	EZDilate 8.5-9.5-10.5 fw	1	2.8 mm	90 mm	2.0 - 5.6 - 9.6 bar	8.5 - 9.5 - 10.5 mm
EGBD-400P-1380	EZDilate 11-12-13 fw	1	2.8 mm	80 mm	2.0 - 3.5 - 5.6 bar	11.0 - 12.0 - 13.0 mm
EGBD-400P-1580	EZDilate 13.5-14.5-15.5 fw	1	2.8 mm	80 mm	2.5 - 4.1 - 6.1 bar	13.5 - 14.5 - 15.5 mm
EGBD-400P-1880	EZDilate 16-17-18 fw	1	2.8 mm	80 mm	2.5 - 4.1 - 5.6 bar	16.0 - 17.0 - 18.0 mm
EGBD-400P-2080	EZDilate 18-19-20 fw	1	2.8 mm	80 mm	2.5 - 3.5 - 5.1 bar	18.0 - 19.0 - 20.0 mm

Single-use inflation device for EZDilate endoscopic balloon dilators

For inflation/deflation of EZDilate and SWIFT balloon dilators
All-in-one pump

Article number	Article Name	Quantity	Max. Pressure	Syringe Volume
EGMAJ-1740	MAJ-1740	1	15 atm (bar)	60 ml (cc)

Single-use achalasia balloon dilators

For the relief of increased pressure on the lower oesophageal sphincter
Fast inflation and deflation
Radiopaque markers
Not to be used through the endoscope
Guidewire-compatible

Article number	Article Name	Quantity	Working Length	Balloon Length (B)	Outer ø (A)
WA95090A	BA-1	1	1000 mm	100 mm	30 mm
WA95091A	BA-2	1	1000 mm	100 mm	35 mm
WA95092A	BA-3	1	1000 mm	100 mm	40 mm

Single-use upper oesophageal covered stents (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Asymmetrical design with flare head on the proximal end enables positioning near the upper-oesophageal sphincter
Dumbbell head on distal end for anti-migration
Inner silicone membrane prevents tumour ingrowth
Fully covered with loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422127	ECP-18060-X070	32 mm	700 mm	24-18-26 mm	6 / 18 mm/Fr.	60 mm	Yes (2)	0.038"
E0422128	ECP-18080-X070	52 mm	700 mm	24-18-26 mm	6 / 18 mm/Fr.	80 mm	Yes (2)	0.038"
E0422129	ECP-18100-X070	72 mm	700 mm	24-18-26 mm	6 / 18 mm/Fr.	100 mm	Yes (2)	0.038"
E0422130	ECP-18120-X070	92 mm	700 mm	24-18-26 mm	6 / 18 mm/Fr.	120 mm	Yes (2)	0.038"
E0422131	ECP-18150-X070	122 mm	700 mm	24-18-26 mm	6 / 18 mm/Fr.	150 mm	Yes (2)	0.038"
E0422132	ECP-18170-X070	142 mm	700 mm	24-18-26 mm	6 / 18 mm/Fr.	170 mm	Yes (2)	0.038"

Single-use upper oesophageal covered stents (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Asymmetrical design enables positioning near the upper-oesophageal sphincter
Dumbbell heads support anti-migration
Inner silicone membrane prevents tumour ingrowth
Fully covered with loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422000	ECN-18-060-X070	30 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	60 mm	Yes (2)	0.038"
E0422001	ECN-18-090-X070	60 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	90 mm	Yes (2)	0.038"
E0422002	ECN-18-110-X070	80 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	110 mm	Yes (2)	0.038"

Single-use oesophageal covered stents (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Dumbbell heads support anti-migration
Inner silicone membrane prevents tumour ingrowth
Fully covered with loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422133	HES-18-060-070	20 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	60 mm	Yes (2)	0.038"
E0422134	HES-18-080-070	40 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	80 mm	Yes (2)	0.038"
E0422135	HES-18-110-070	70 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	110 mm	Yes (2)	0.038"
E0422136	HES-18-140-070	100 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	140 mm	Yes (2)	0.038"
E0422137	HES-18-170-070	130 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	170 mm	Yes (2)	0.038"
E0422138	HES-22-060-070	20 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	60 mm	Yes (2)	0.038"
E0422139	HES-22-080-070	40 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	80 mm	Yes (2)	0.038"
E0422140	HES-22-110-070	70 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	110 mm	Yes (2)	0.038"
E0422141	HES-22-140-070	100 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	140 mm	Yes (2)	0.038"
E0422142	HES-22-170-070	130 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	170 mm	Yes (2)	0.038"
E0422143	HES-22-180-070	140 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	180 mm	Yes (2)	0.038"

Single-use oesophageal covered stents (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Bone-shaped head on the proximal end to minimise tissue overgrowth
Dumbbell head on distal end for anti-migration
Inner silicone membrane prevents tumour ingrowth
Fully covered with loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422003	ECV-20-080-X070	40 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	80 mm	Yes (2)	0.038"
E0422004	ECV-20-110-X070	70 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	110 mm	Yes (2)	0.038"
E0422005	ECV-20-140-X070	100 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	140 mm	Yes (2)	0.038"
E0422006	ECV-20-170-X070	130 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	170 mm	Yes (2)	0.038"

Single-use oesophageal covered stents (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Bone-shaped heads to minimise tissue overgrowth
Inner silicone membrane prevents tumour ingrowth
Extra-large diameter of 28 mm
Fully covered with loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422144	NES-28-060-070	20 mm	700 mm	34-28-34 mm	8 / 24 mm/Fr.	60 mm	Yes (2)	0.038"
E0422145	NES-28-080-070	40 mm	700 mm	34-28-34 mm	8 / 24 mm/Fr.	80 mm	Yes (2)	0.038"
E0422146	NES-28-100-070	60 mm	700 mm	34-28-34 mm	8 / 24 mm/Fr.	100 mm	Yes (2)	0.038"
E0422007	NES-28-110-070	70 mm	700 mm	34-28-34 mm	8 / 24 mm/Fr.	110 mm	Yes (2)	0.038"
E0422147	NES-28-120-070	80 mm	700 mm	34-28-34 mm	8 / 24 mm/Fr.	120 mm	Yes (2)	0.038"
E0422008	NES-28-140-070	100 mm	700 mm	34-28-34 mm	8 / 24 mm/Fr.	140 mm	Yes (2)	0.038"
E0422009	NES-28-170-070	130 mm	700 mm	34-28-34 mm	8 / 24 mm/Fr.	170 mm	Yes (2)	0.038"

Single-use oesophageal partially covered stents (NCN)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Uncovered dumbbell heads on the both ends for anti-migration
Inner silicone membrane prevents tumour ingrowth
Loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422148	EPB-18060-X070	20 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	60 mm	Yes (2)	0.038"
E0422149	EPB-18080-X070	40 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	80 mm	Yes (2)	0.038"
E0422150	EPB-18110-X070	70 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	110 mm	Yes (2)	0.038"
E0422151	EPB-18140-X070	100 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	140 mm	Yes (2)	0.038"
E0422152	EPB-18170-X070	130 mm	700 mm	24-18-24 mm	6 / 18 mm/Fr.	170 mm	Yes (2)	0.038"
E0422155	EPB-22060-Z070	20 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	60 mm	Yes (2)	0.038"
E0422156	EPB-22080-Z070	40 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	80 mm	Yes (2)	0.038"
E0422157	EPB-22090-Z070	50 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	90 mm	Yes (2)	0.038"
E0422158	EPB-22110-Z070	70 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	110 mm	Yes (2)	0.038"
E0422159	EPB-22120-Z070	80 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	120 mm	Yes (2)	0.038"
E0422160	EPB-22140-Z070	100 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	140 mm	Yes (2)	0.038"
E0422161	EPB-22160-Z070	120 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	160 mm	Yes (2)	0.038"
E0422162	EPB-22170-Z070	130 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	170 mm	Yes (2)	0.038"

Single-use oesophageal partially covered stents (NCN)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Bone-shaped head on the proximal end to minimise tissue overgrowth
Uncovered heads and dumbbell on distal end for anti-migration
Inner silicone membrane prevents tumour ingrowth
Loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422010	EPW-20-080-X070	40 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	80 mm	Yes (2)	0.038"
E0421072	EPW-20-100-070	60 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	100 mm	Yes (2)	0.038"
E0422011	EPW-20-110-X070	70 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	110 mm	Yes (2)	0.038"
E0422012	EPW-20-140-X070	100 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	140 mm	Yes (2)	0.038"
E0421073	EPW-20-150-070	110 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	150 mm	Yes (2)	0.038"

Single-use oesophageal covered, skidproof stents (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Dumbbell heads on both ends support anti-migration
Special slip-proof design for anti-migration
Loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422169	ECD-20-080-070	40 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	80 mm	Yes (2)	0.038"
E0422170	ECD-20-120-070	80 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	120 mm	Yes (2)	0.038"
E0422171	ECD-20-140-070	100 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	140 mm	Yes (2)	0.038"
E0422172	ECD-20-180-070	140 mm	700 mm	26-20-26 mm	6 / 18 mm/Fr.	180 mm	Yes (2)	0.038"

Single-use oesophageal uncovered stents (NNN)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Uncovered stent and flare heads on both ends for anti-migration
One loop on the proximal end for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422173	HNS22-090-070	50 mm	700 mm	28-22-28 mm	4 / 12 mm/Fr.	90 mm	Yes (1)	0.038"
E0422174	HNS22-120-070	80 mm	700 mm	28-22-28 mm	4 / 12 mm/Fr.	120 mm	Yes (1)	0.038"
E0422175	HNS22-160-070	120 mm	700 mm	28-22-28 mm	4 / 12 mm/Fr.	160 mm	Yes (1)	0.038"

Single-use oesophageal covered stents for benign strictures (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Bone-shaped head on the proximal to minimise tissue overgrowth
Fully covered stent and membrane outer covering on the shoulders for easy removal
Loops on both ends for repositioning right after stent placement
For malignant and benign indications
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422191	EBN-22-060-Z070	20 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	60 mm	Yes (2)	0.038"
E0422015	EBN-22-080-Z070	40 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	80 mm	Yes (2)	0.038"
E0422192	EBN-22-100-Z070	60 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	100 mm	Yes (2)	0.038"
E0422016	EBN-22-120-Z070	80 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	120 mm	Yes (2)	0.038"

Single-use oesophageal covered stents (CCC), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Dumbbell heads on both ends for anti-migration
Lasso for repositioning right after stent placement
Easy and convenient through-the-scope application (TTS)
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0420533	ECBA-18-060-230	3.7 mm	30 mm	2300 mm	26-18-26 mm	3.47 / 10.5 mm/Fr.	60 mm	Yes (1)	0.035"
E0420534	ECBA-18-090-230	3.7 mm	60 mm	2300 mm	26-18-26 mm	3.47 / 10.5 mm/Fr.	90 mm	Yes (1)	0.035"
E0420535	ECBA-18-100-230	3.7 mm	70 mm	2300 mm	26-18-26 mm	3.47 / 10.5 mm/Fr.	100 mm	Yes (1)	0.035"
E0420536	ECBA-18-120-230	3.7 mm	90 mm	2300 mm	26-18-26 mm	3.47 / 10.5 mm/Fr.	100 mm	Yes (1)	0.035"
E0420537	ECBA-18-150-230	3.7 mm	120 mm	2300 mm	26-18-26 mm	3.47 / 10.5 mm/Fr.	150 mm	Yes (1)	0.035"

Single-use oesophageal partially covered stents (NCN), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Uncovered dumbbell heads on both ends for anti-migration
Lasso for repositioning right after stent placement
Easy and convenient through-the-scope application (TTS)
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422198	EPBA-20-060-230	3.7 mm	30 mm	2300 mm	26-20-26 mm	3.47 / 10.5 mm/Fr.	60 mm	Yes (1)	0.035"
E0422199	EPBA-20-080-230	3.7 mm	50 mm	2300 mm	26-20-26 mm	3.47 / 10.5 mm/Fr.	80 mm	Yes (1)	0.035"
E0422020	EPBA-20-090-230	3.7 mm	60 mm	2300 mm	26-20-26 mm	3.47 / 10.5 mm/Fr.	90 mm	Yes (1)	0.035"
E0422200	EPBA-20-100-230	3.7 mm	70 mm	2300 mm	26-20-26 mm	3.47 / 10.5 mm/Fr.	100 mm	Yes (1)	0.035"
E0422022	EPBA-20-150-230	3.7 mm	120 mm	2300 mm	26-20-26 mm	3.47 / 10.5 mm/Fr.	150 mm	Yes (1)	0.035"

Single-use oesophageal covered stents with anti-reflux function (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Dumbbell heads on both ends for anti-migration
S-valve inside the stent for anti-reflux function
Loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422176	HESV-18-090-070	50 mm	700 mm	24-18-24 mm	8 / 24 mm/Fr.	90 mm	Yes (2)	0.038"
E0422177	HESV-18-120-070	80 mm	700 mm	24-18-24 mm	8 / 24 mm/Fr.	120 mm	Yes (2)	0.038"
E0422178	HESV-18-160-070	120 mm	700 mm	24-18-24 mm	8 / 24 mm/Fr.	160 mm	Yes (2)	0.038"
E0422179	HESV-22-060-070	20 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	60 mm	Yes (2)	0.038"
E0422180	HESV-22-090-070	50 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	90 mm	Yes (2)	0.038"
E0422181	HESV-22-120-070	80 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	120 mm	Yes (2)	0.038"
E0422182	HESV-22-160-070	120 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	160 mm	Yes (2)	0.038"
E0422183	HESV-22-170-070	130 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	170 mm	Yes (2)	0.038"

Single-use oesophageal covered stents with anti-reflux function (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Bone-shaped head on the proximal end to minimise tissue overgrowth
Dumbbell head on the distal end for anti-migration
S-valve inside the stent for anti-reflux function
Loops on both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions
Delivery device not reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422013	ECW-22-090-Z070	50 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	90 mm	Yes (2)	0.038"
E0422014	ECW-22-120-Z070	80 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	120 mm	Yes (2)	0.038"
E0420582	ECW22160-Z070	120 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	160 mm	Yes (2)	0.038"

Single-use oesophageal partially covered stents with anti-reflux function (CCN)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility under fluoroscopy due to 12 gold radiopaque markers
Dumbbell heads and uncovered on the proximal end for antimigration
S-valve inside the stent for anti-reflux function
Lassos on the both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0420571	EPV-22-090-070	50 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	90 mm	Yes (2)	0.038"
E0420572	EPV-22-120-070	80 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	120 mm	Yes (2)	0.038"
E0420573	EPV-22-160-070	120 mm	700 mm	28-22-28 mm	8 / 24 mm/Fr.	160 mm	Yes (2)	0.038"

Single-use oesophageal covered stents (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility under fluoroscopy due to 12 gold radiopaque markers
Dumbbell heads and uncovered on the proximal end for anti-migration
S-valve inside the stent for anti-reflux function
Lassos on the both ends for repositioning right after stent placement
Ergonomic over-the-wire (OTW) delivery system with soft olive tip for easy penetration of tight lesions

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Size	Stent Length	Lasso	Max. ø of Guidewire
E0422196	ECBS-26-180-090	130 mm	900 mm	34-26-36 mm	8 / 24 mm/Fr.	36-26-34 mm	180 mm	Yes (2)	0.038"
E0422291	ECBS-26-210-090	160 mm	900 mm	34-26-34 mm	8 / 24 mm/Fr.	36-26-34 mm	210 mm	Yes (2)	0.038"
E0422197	ECBS-26-240-090	190 mm	900 mm	34-26-36 mm	8 / 24 mm/Fr.	36-26-34 mm	240 mm	Yes (2)	0.038"

12 3 Next →

Western Europe

Central and Eastern Europe

Middle East and Africa

Languages

Single-use wire-guided three-stage oesophageal, pyloric, colonic and papillary balloon dilators

Single-use fixed-wire three-stage oesophageal balloon dilatators

Single-use inflation device for EZDilate endoscopic balloon dilators

Single-use achalasia balloon dilators

Single-use upper oesophageal covered stents (CCC)

Single-use upper oesophageal covered stents (CCC)

Single-use oesophageal covered stents (CCC)

Single-use oesophageal covered stents (CCC)

Single-use oesophageal covered stents (CCC)

Single-use oesophageal partially covered stents (NCN)

Single-use oesophageal partially covered stents (NCN)

Single-use oesophageal covered, skidproof stents (CCC)

Single-use oesophageal uncovered stents (NNN)

Single-use oesophageal covered stents for benign strictures (CCC)

Single-use oesophageal covered stents (CCC), TTS

Single-use oesophageal partially covered stents (NCN), TTS

Single-use oesophageal covered stents with anti-reflux function (CCC)

Single-use oesophageal covered stents with anti-reflux function (CCC)

Single-use oesophageal partially covered stents with anti-reflux function (CCN)

Single-use oesophageal covered stents (CCC)
