Single-use Hilar Biliary Uncovered Stents (NNN), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Large cell structure on the whole length of the stent to facilitate second stent placement with the stent-through-stent technique
Reduced stent migration supported by flared ends
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire	Area Compatibility
E0422222	BNL-10-060-180	4.2 mm	46 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	60 mm	No	0.035"
E0422223	BNL-10-080-180	4.2 mm	66 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	80 mm	No	0.035"

Single-use Hilar Biliary Uncovered Stents (NNN), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 16 gold radiopaque markers
Large cell structure in the middle part of stent to facilitate second stent placement with the stent-through-stent technique
Reduced stent migration supported by flared ends
Delivery device not reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422068	BNY-10-060-180	4.2 mm	46 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	60 mm	No	0.035"
E0422069	BNY-10-080-180	4.2 mm	66 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	80 mm	No	0.035"
E0422070	BNY-10-100-180	4.2 mm	86 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	100 mm	No	0.035"
E0422071	BNY-10-120-180	4.2 mm	106 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	120 mm	No	0.035"

Single-use Hilar Biliary Uncovered Stents (NNN), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Thin, dedicated delivery device for simultaneous side-by-side stenting
For simultaneous side-by-side stenting, a working channel of minimum 4.2 mm is required
Stent can be recaptured

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422086	BNHS-06-040-180	3.2 mm	40 mm	1800 mm	6 mm	1.97 / 5.9 mm/Fr.	40 mm	No	0.025"
E0422087	BNHS-06-060-180	3.2 mm	60 mm	1800 mm	6 mm	1.97 / 5.9 mm/Fr.	60 mm	No	0.025"
E0422088	BNHS-06-080-180	3.2 mm	80 mm	1800 mm	6 mm	1.97 / 5.9 mm/Fr.	80 mm	No	0.025"
E0422089	BNHS-06-100-180	3.2 mm	100 mm	1800 mm	6 mm	1.97 / 5.9 mm/Fr.	100 mm	No	0.025"
E0422090	BNHS-06-120-180	3.2 mm	120 mm	1800 mm	6 mm	1.97 / 5.9 mm/Fr.	120 mm	No	0.025"
E0422091	BNHS-08-040-180	3.2 mm	40 mm	1800 mm	8 mm	1.97 / 5.9 mm/Fr.	40 mm	No	0.025"
E0422092	BNHS-08-060-180	3.2 mm	60 mm	1800 mm	8 mm	1.97 / 5.9 mm/Fr.	60 mm	No	0.025"
E0422093	BNHS-08-080-180	3.2 mm	80 mm	1800 mm	8 mm	1.97 / 5.9 mm/Fr.	80 mm	No	0.025"
E0422094	BNHS-08-100-180	3.2 mm	100 mm	1800 mm	8 mm	1.97 / 5.9 mm/Fr.	100 mm	No	0.025"
E0422095	BNHS-08-120-180	3.2 mm	120 mm	1800 mm	8 mm	1.97 / 5.9 mm/Fr.	120 mm	No	0.025"

Single-use biliary covered stents with flaps (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers on the stent’s mesh and on every second anchoring flap (16 markers in total)
Reduced stent migration supported by four anchoring flaps on each end
Reduced tissue ingrowth achieved by silicone inner covering
For malignant and benign indications
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422101	BCG-06-060-180	4.2 mm	40 mm	1800 mm	6 mm	2.83 / 8.5 mm/Fr.	60 mm	No	0.035"
E0422102	BCG-06-080-180	4.2 mm	60 mm	1800 mm	6 mm	2.83 / 8.5 mm/Fr.	80 mm	No	0.035"
E0422103	BCG-06-100-180	4.2 mm	80 mm	1800 mm	6 mm	2.83 / 8.5 mm/Fr.	100 mm	No	0.035"
E0422104	BCG-06-120-180	4.2 mm	100 mm	1800 mm	6 mm	2.83 / 8.5 mm/Fr.	120 mm	No	0.035"
E0422105	BCG-08-080-180	4.2 mm	60 mm	1800 mm	8 mm	2.83 / 8.5 mm/Fr.	80 mm	No	0.035"
E0422106	BCG-08-120-180	4.2 mm	100 mm	1800 mm	8 mm	2.83 / 8.5 mm/Fr.	120 mm	No	0.035"
E0422107	BCG-10-040-180	4.2 mm	20 mm	1800 mm	10 mm	2.83 / 8.5 mm/Fr.	40 mm	No	0.035"
E0422108	BCG-10-060-180	4.2 mm	40 mm	1800 mm	10 mm	2.83 / 8.5 mm/Fr.	60 mm	No	0.035"
E0422109	BCG-10-080-180	4.2 mm	60 mm	1800 mm	10 mm	2.83 / 8.5 mm/Fr.	80 mm	No	0.035"
E0422110	BCG-10-100-180	4.2 mm	80 mm	1800 mm	10 mm	2.83 / 8.5 mm/Fr.	100 mm	No	0.035"
E0422111	BCG-10-120-180	4.2 mm	100 mm	1800 mm	10 mm	2.83 / 8.5 mm/Fr.	120 mm	No	0.035"

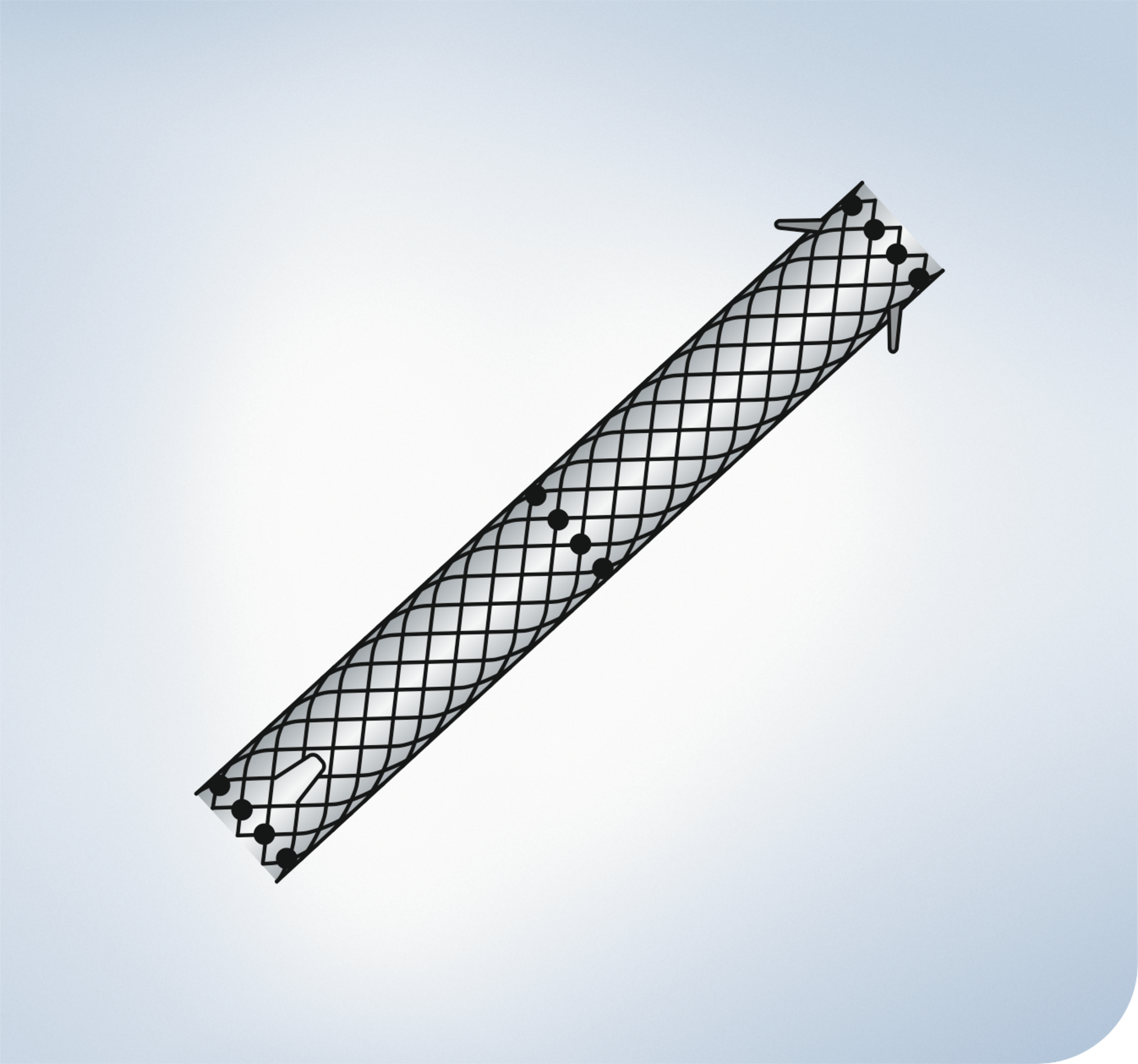

Single-use Biliary Covered Stents with Flaps (CCC) , TTS –
Distal Wire-guided, FAST™ Delivery System

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 radiopaque markers on the stent’s mesh
Reduced stent migration supported by two anchoring flaps on each end
Reduced tissue ingrowth achieved by silicone inner covering
For malignant and benign indications
Stent can be recaptured

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0420512	BCG-08-040-S180	4.2 mm	20 mm	1800 mm	8 mm	3.0 / 9.0 mm/Fr.	40 mm	No	0.035’’
E0420513	BCG-08-060-S180	4.2 mm	40 mm	1800 mm	8 mm	3.0 / 9.0 mm/Fr.	60 mm	No	0.035’’
E0420514	BCG-08-080-S180	4.2 mm	60 mm	1800 mm	8 mm	3.0 / 9.0 mm/Fr.	80 mm	No	0.035"
E0422288	BCG-10-040-S180	4.2 mm	20 mm	1800 mm	10 mm	3.0 / 9.0 mm/Fr.	40 mm	No	0.035"
E0422289	BCG-10-060-S180	4.2 mm	40 mm	1800 mm	10 mm	3.0 / 9.0 mm/Fr.	60 mm	No	0.035"
E0422290	BCG-10-080-S180	4.2 mm	60 mm	1800 mm	10 mm	3.0 / 9.0 mm/Fr.	80 mm	No	0.035"

Single-use biliary covered stents with flaps (CCC) for percutaneous application

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers on the stent’s mesh and on every second anchoring flap (16 markers in total)
Reduced stent migration supported by four anchoring flaps on each end
Reduced tissue ingrowth achieved by silicone inner covering
For percutaneous application
For malignant and benign indications
Delivery device reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422281	BCG-10-040-060	20 mm	600 mm	10 mm	2.83 / 8.5 mm/Fr.	40 mm	No	0.035"
E0422282	BCG-10-060-060	40 mm	600 mm	10 mm	2.83 / 8.5 mm/Fr.	60 mm	No	0.035"
E0422112	BCG-10-080-060	60 mm	600 mm	10 mm	2.83 / 8.5 mm/Fr.	80 mm	No	0.035"
E0422113	BCG-10-100-060	80 mm	600 mm	10 mm	2.83 / 8.5 mm/Fr.	100 mm	No	0.035"
E0422283	BCG-10-120-060	100 mm	600 mm	10 mm	2.83 / 8.5 mm/Fr.	120 mm	No	0.035"

Single-use biliary covered stents with flaps (CCC)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers on the stent’s mesh and on every second anchoring flap (14 markers in total)
Reduced stent migration supported by four anchoring flaps on the distal end and a flared proximal end
Reduced tissue ingrowth achieved by silicone inner covering
For malignant and benign indications
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422096	BCS10040-D180	4.2 mm	23 mm	1800 mm	10-10-13.5 mm	2.83 / 8.5 mm/Fr.	40 mm	No	0.035"
E0422097	BCS10060-D180	4.2 mm	43 mm	1800 mm	10-10-13.5 mm	2.83 / 8.5 mm/Fr.	60 mm	No	0.035"
E0422098	BCS10080-D180	4.2 mm	63 mm	1800 mm	10-10-13.5 mm	2.83 / 8.5 mm/Fr.	80 mm	No	0.035"
E0422099	BCS10100-D180	4.2 mm	83 mm	1800 mm	10-10-13.5 mm	2.83/8.5 mm/Fr.	100 mm	No	0.035"
E0422100	BCS10120-D180	4.2 mm	103 mm	1800 mm	10-10-13.5 mm	2.83 / 8.5 mm/Fr.	120 mm	No	0.035"
E0420543	BCS-12-040-180	4.2 mm	25 mm	1800 mm	12-12-15.5 mm	3.13 / 9.5 mm/Fr.	40 mm	No	0.035"
E0420544	BCS-12-060-180	4.2 mm	45 mm	1800 mm	12-12-15.5 mm	3.13 / 9.5 mm/Fr.	60 mm	No	0.035"
E0420545	BCS-12-080-180	4.2 mm	65 mm	1800 mm	12-12-15.5 mm	3.13 / 9.5 mm/Fr.	80 mm	No	0.035"

Single-use biliary covered stents with flaps and two lassos (CCC), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers on the stent’s mesh and on every second anchoring flap (14 markers in total)
Reduced stent migration supported by four anchoring flaps on the proximal end and a flared distal end
Short loop for repositioning and long proximal loop marked with a golden marker designed for inside-out removal
Reduced tissue ingrowth achieved by silicone inner covering
For malignant and benign indications
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422114	BCT-10-040-180	4.2 mm	23 mm	1800 mm	10-10-13.5 mm	3.0 / 9.0 mm/Fr.	40 mm	Yes (2)	0.035"
E0422115	BCT-10-060-180	4.2 mm	43 mm	1800 mm	10-10-13.5 mm	3.0 / 9.0 mm/Fr.	60 mm	Yes (2)	0.035"
E0422116	BCT-10-080-180	4.2 mm	63 mm	1800 mm	10-10-13.5 mm	3.0 / 9.0 mm/Fr.	80 mm	Yes (2)	0.035"
E0422117	BCT-10-100-180	4.2 mm	83 mm	1800 mm	10-10-13.5 mm	3.0 / 9.0 mm/Fr.	100 mm	Yes (2)	0.035"
E0422118	BCT-10-120-180	4.2 mm	103 mm	1800 mm	10-10-13.5 mm	3.0 / 9.0 mm/Fr.	120 mm	Yes (2)	0.035"

Single-use biliary covered stents with one lasso (CCC), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Reduced stent migration supported by flared ends
Proximal lasso facilitates stent repositioning and removal
Reduced tissue ingrowth achieved by silicone inner covering
Reduced foreshortening compared to SHC
For malignant and benign indications
Stent can be recaptured

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422236	BCB-08040-E180	4.2 mm	30 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	40 mm	Yes (1)	0.035"
E0422237	BCB-08050-E180	4.2 mm	40 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	50 mm	Yes (1)	0.035"
E0422238	BCB-08060-E180	4.2 mm	50 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	60 mm	Yes (1)	0.035"
E0422239	BCB-08080-E180	4.2 mm	70 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	80 mm	Yes (1)	0.035"
E0422240	BCB-08100-E180	4.2 mm	90 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	100 mm	Yes (1)	0.035"
E0422241	BCB-10040-E180	4.2 mm	30 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	40 mm	Yes (1)	0.035"
E0422242	BCB-10050-E180	4.2 mm	40 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	50 mm	Yes (1)	0.035"
E0422243	BCB-10060-E180	4.2 mm	50 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	60 mm	Yes (1)	0.035"
E0422244	BCB-10080-E180	4.2 mm	70 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	80 mm	Yes (1)	0.035"
E0422245	BCB-10100-E180	4.2 mm	90 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	100 mm	Yes (1)	0.035"

Single-use biliary covered stents (CCC) for percutaneous application

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Reduced stent migration supported by flared ends
Reduced tissue ingrowth achieved by silicone inner covering
For percutaneous application
Delivery device reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire	Area Compatibility
E0422254	BCA-10060-Q060	50 mm	600 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	60 mm	No	0.035"
E0422255	BCA-10100-Q060	90 mm	600 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	100 mm	No	0.035"

Single-use biliary uncovered stents (NNN), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Reduced stent migration supported by flared ends
Increased radial force and better conformity compared to SHS
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422224	BNA-08-040-G180	4.2 mm	26 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	40 mm	No	0.035"
E0422225	BNA-08-050-G180	4.2 mm	36 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	50 mm	No	0.035"
E0422226	BNA-08-060-G180	4.2 mm	46 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	60 mm	No	0.035"
E0422227	BNA-08-080-G180	4.2 mm	66 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	80 mm	No	0.035"
E0422228	BNA-08-100-G180	4.2 mm	86 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	100 mm	No	0.035"
E0422229	BNA-10-040-G180	4.2 mm	26 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	40 mm	No	0.035"
E0422230	BNA-10-050-G180	4.2 mm	36 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	50 mm	No	0.035"
E0422231	BNA-10-060-G180	4.2 mm	46 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	60 mm	No	0.035"
E0422232	BNA-10-080-G180	4.2 mm	66 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	80 mm	No	0.035"
E0422233	BNA-10-100-G180	4.2 mm	86 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	100 mm	No	0.035"

Single-use Hilar Biliary Uncovered Stents for Percutaneous Application (NNN)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Reduced stent migration supported by flared ends
Delivery device reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422298	BNA-08-040-Q060	26 mm	600 mm	11.5-8-11.5 mm	2.33 / 7 mm/Fr.	40 mm	No	0.035"
E0422299	BNA-08-050-Q060	36 mm	600 mm	11.5-8-11.5 mm	2.33 / 7 mm/Fr.	50 mm	No	0.035"
E0422300	BNA-08-060-Q060	46 mm	600 mm	11.5-8-11.5 mm	2.33 / 7 mm/Fr.	60 mm	No	0.035"
E0422301	BNA-08-080-Q060	66 mm	600 mm	11.5-8-11.5 mm	2.33 / 7 mm/Fr.	80 mm	No	0.035"
E0422302	BNA-08-100-Q060	86 mm	600 mm	11.5-8-11.5 mm	2.33 / 7 mm/Fr.	100 mm	No	0.035"
E0422303	BNA-10-040-Q060	26 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	40 mm	No	0.035"
E0422304	BNA-10-050-Q060	36 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	50 mm	No	0.035"
E0422234	BNA-10-060-Q060	46 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	60 mm	No	0.035"
E0422305	BNA-10-080-Q060	66 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	80 mm	No	0.035"
E0422235	BNA-10-100-Q060	86 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	100 mm	No	0.035"

Single-use biliary uncovered stents (NNN), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Reduced stent migration supported by flared ends
Stent can be recaptured

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422076	SHS-10-040-180	4.2 mm	26 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	40 mm	No	0.035"
E0422077	SHS-10-060-180	4.2 mm	46 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	60 mm	No	0.035"
E0422078	SHS-10-080-180	4.2 mm	66 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	80 mm	No	0.035"
E0422079	SHS-10-100-180	4.2 mm	86 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	100 mm	No	0.035"
E0422080	SHS-10-120-180	4.2 mm	106 mm	1800 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	120 mm	No	0.035"

Single-use Biliary Uncovered Stents (NNN), TTS –
Distal Wire-guided, FAST™ Delivery System

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Reduced stent migration supported by flared ends
Stent can be recaptured

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422284	SHS-10-040-S180	4.2 mm	26 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	40 mm	No	0.035"
E0422285	SHS-10-060-S180	4.2 mm	46 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	60 mm	No	0.035"
E0422286	SHS-10-080-S180	4.2 mm	66 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	80 mm	No	0.035"
E0422287	SHS-10-100-S180	4.2 mm	86 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	100 mm	No	0.035"

Single-use Hilar Biliary Uncovered Stents for Percutaneous Application (NNN)

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Reduced stent migration supported by flared ends
Delivery device reloadable

Article number	Article Name	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422081	SHS-10-040-060	26 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	40 mm	No	0.035"
E0422082	SHS-10-060-060	46 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	60 mm	No	0.035"
E0422083	SHS-10-080-060	66 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	80 mm	No	0.035"
E0422084	SHS-10-100-060	86 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	100 mm	No	0.035"
E0422085	SHS-10-120-060	106 mm	600 mm	13.5-10-13.5 mm	2.33 / 7 mm/Fr.	120 mm	No	0.035"

Single-use biliary partially covered stents (NCN), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 16 gold radiopaque markers
Reduced stent migration supported by uncovered flared ends
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422264	BPA-10040-D180	4.2 mm	26 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	40 mm	No	0.035"
E0422265	BPA-10050-D180	4.2 mm	36 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	50 mm	No	0.035"
E0422266	BPA-10060-D180	4.2 mm	46 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	60 mm	No	0.035"
E0422267	BPA-10080-D180	4.2 mm	66 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	80 mm	No	0.035"
E0422268	BPA-10100-D180	4.2 mm	86 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	100 mm	No	0.035"

Single-use biliary partially covered stents (NC), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 12 gold radiopaque markers
Reduced stent migration supported by flared ends and uncovered proximal part
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire	Area Compatibility
E0422269	BPN-10-040-180	4.2 mm	26 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	40 mm	No	0.035"
E0422270	BPN-10-100-180	4.2 mm	86 mm	1800 mm	13.5-10-13.5 mm	2.83 / 8.5 mm/Fr.	100 mm	No	0.035"

Single-use biliary covered stents (CCC), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Reduced stent migration supported by flared ends
Proximal loop for effortless stent repositioning and removal
Increased drainage efficiency supported by hybrid design with multiple holes in the silicone membrane
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422271	BMCL-08-040-180	4.2 mm	26 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	40 mm	Yes (1)	0.035"
E0422272	BMCL-08-050-180	4.2 mm	36 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	50 mm	Yes (1)	0.035"
E0422273	BMCL-08-060-180	4.2 mm	46 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	60 mm	Yes (1)	0.035"
E0422274	BMCL-08-080-180	4.2 mm	66 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	80 mm	Yes (1)	0.035"
E0422275	BMCL-08-100-180	4.2 mm	86 mm	1800 mm	11.5-8-11.5 mm	2.66 / 8 mm/Fr.	100 mm	Yes (1)	0.035"
E0422276	BMCL-10-040-180	4.2 mm	26 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	40 mm	Yes (1)	0.035"
E0422277	BMCL-10-050-180	4.2 mm	36 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	50 mm	Yes (1)	0.035"
E0422278	BMCL-10-060-180	4.2 mm	46 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	60 mm	Yes (1)	0.035"
E0422279	BMCL-10-080-180	4.2 mm	66 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	80 mm	Yes (1)	0.035"
E0422280	BMCL-10-100-180	4.2 mm	86 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	100 mm	Yes (1)	0.035"
E0421074	BMCL-10-120-180	4.2 mm	106 mm	1800 mm	13.5-10-13.5 mm	2.66 / 8 mm/Fr.	120 mm	Yes (1)	0.035"

Single-use biliary covered stents (CCC), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to nine gold radiopaque markers
Minimised leakage supported by large wheel design and full-length covering with silicone
Indicated for pancreatic drainage
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422256	BCF-10-020-180	3.7 mm	13 mm	1800 mm	22-10-22 mm	3.5 / 10.5 mm/Fr.	20 mm	Yes (1)	0.035"
E0422257	BCF-12-020-180	3.7 mm	13 mm	1800 mm	24-12-24 mm	3.5 / 10.5 mm/Fr.	20 mm	Yes (1)	0.035"
E0422119	BCF-12-030-180	3.7 mm	23 mm	1800 mm	24-12-24 mm	3.5 / 10.5 mm/Fr.	30 mm	Yes (1)	0.035"
E0422120	BCF-12-040-180	3.7 mm	33 mm	1800 mm	24-12-24 mm	3.5 / 10.5 mm/Fr.	40 mm	Yes (1)	0.035"
E0422258	BCF-14-020-180	3.7 mm	12 mm	1800 mm	26-14-26 mm	3.5 / 10.5 mm/Fr.	20 mm	Yes (1)	0.035"
E0422121	BCF-14-030-180	3.7 mm	22 mm	1800 mm	26-14-26 mm	3.5 / 10.5 mm/Fr.	30 mm	Yes (1)	0.035"
E0422122	BCF-14-040-180	3.7 mm	32 mm	1800 mm	26-14-26 mm	3.5 / 10.5 mm/Fr.	40 mm	Yes (1)	0.035"
E0422259	BCF-16-020-180	3.7 mm	12 mm	1800 mm	28-16-28 mm	3.5 / 10.5 mm/Fr.	20 mm	Yes (1)	0.035"
E0422123	BCF-16-030-180	3.7 mm	22 mm	1800 mm	28-16-28 mm	3.5 / 10.5 mm/Fr.	30 mm	Yes (1)	0.035"
E0422124	BCF-16-040-180	3.7 mm	32 mm	1800 mm	28-16-28 mm	3.5 / 10.5 mm/Fr.	40 mm	Yes (1)	0.035"

Single-use biliary proximally covered stents with eight flaps, (NC), TTS

Better flexibility and optimal wall adaption due to Cross & Hook Nitinol wire structure
Excellent visibility during fluoroscopy due to 16 gold radiopaque markers
Reduced stent migration supported by uncovered distal part and flaps
Delivery device reloadable

Article number	Article Name	Min. Working Channel ø	Working Length	Delivery Device Length	Stent ø	Delivery Device ø	Stent Length	Lasso	Max. ø of Guidewire
E0422260	BPF-10-060-180	3.7 mm	38 mm	1800 mm	10-10-21 mm	3.4 / 10.2 mm/Fr.	60 mm	Yes (1)	0.035"
E0422261	BPF-10-080-180	3.7 mm	58 mm	1800 mm	10-10-21 mm	3.4 / 10.2 mm/Fr.	80 mm	Yes (1)	0.035"
E0422262	BPF-10-100-180	3.7 mm	78 mm	1800 mm	10-10-21 mm	3.4 / 10.2 mm/Fr.	100 mm	Yes (1)	0.035"

12 Next →

Western Europe

Central and Eastern Europe

Middle East and Africa

Languages

Single-use Hilar Biliary Uncovered Stents (NNN), TTS

Single-use Hilar Biliary Uncovered Stents (NNN), TTS

Single-use Hilar Biliary Uncovered Stents (NNN), TTS

Single-use biliary covered stents with flaps (CCC)

Single-use Biliary Covered Stents with Flaps (CCC) , TTS – Distal Wire-guided, FAST™ Delivery System

Single-use biliary covered stents with flaps (CCC) for percutaneous application

Single-use biliary covered stents with flaps (CCC)

Single-use biliary covered stents with flaps and two lassos (CCC), TTS

Single-use biliary covered stents with one lasso (CCC), TTS

Single-use biliary covered stents (CCC) for percutaneous application

Single-use biliary uncovered stents (NNN), TTS

Single-use Hilar Biliary Uncovered Stents for Percutaneous Application (NNN)

Single-use biliary uncovered stents (NNN), TTS

Single-use Biliary Uncovered Stents (NNN), TTS – Distal Wire-guided, FAST™ Delivery System

Single-use Hilar Biliary Uncovered Stents for Percutaneous Application (NNN)

Single-use biliary partially covered stents (NCN), TTS

Single-use biliary partially covered stents (NC), TTS

Single-use biliary covered stents (CCC), TTS

Single-use biliary covered stents (CCC), TTS

Single-use biliary proximally covered stents with eight flaps, (NC), TTS

Single-use Biliary Covered Stents with Flaps (CCC) , TTS –
Distal Wire-guided, FAST™ Delivery System

Single-use Biliary Uncovered Stents (NNN), TTS –
Distal Wire-guided, FAST™ Delivery System
